TryHackMe: Block

Short room on forensics where we extract hashes from a given LSASS dump and using the data to decrypt SMB3 traffic within a given pcap file on wireshark.

card index

Initial Enumeration

From the room description we are given a zip archive file ,a packet capture and a memory dump of the LSASS process.

1
2
3
4
5
6

$ zipinfo evidence-1697996360986.zip
Archive:  evidence-1697996360986.zip
Zip file size: 43679925 bytes, number of entries: 2
-rw-r--r--  3.0 unx    34544 bx defN 23-Oct-22 20:04 traffic.pcapng
-rw-r--r--  3.0 unx 171558408 bx defN 23-Oct-22 19:54 lsass.DMP
2 files, 171592952 bytes uncompressed, 43679601 bytes compressed:  74.5%

LSASS.DMP

I start by checking the lsass.dmp file and we can see it is a minidump for a process and goes without saying it is LSASS-Local Security Authority Subsystem Service

1
2

$ file lsass.DMP
lsass.DMP: Mini DuMP crash report, 16 streams, Sun Oct 22 16:54:50 2023, 0x421826 type

Using pypykatz I extract some credentials from the memory dump.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

$ pypykatz lsa minidump lsass.DMP
INFO:pypykatz:Parsing file lsass.DMP
FILE: ======== lsass.DMP =======
== LogonSession ==
authentication_id 1883025 (1cbb91)
session_id 3
username mrealman
domainname BLOCK
logon_server WIN-2258HHCBNQR
logon_time 2023-10-22T16:53:54.168637+00:00
sid S-1-5-21-3761843758-2185005375-3584081457-1104
luid 1883025
        == MSV ==
                Username: mrealman
                Domain: BLOCK
                LM: NA
                NT: 1f9175a516211660c7a8143b0f36ab44
                SHA1: ccd27b4bf489ffda2251897ef86fdb488f248aef
                DPAPI: 3d618a1fffd6c879cd0b056910ec0c3100000000
        == WDIGEST [1cbb91]==
                username mrealman
                domainname BLOCK
                password None
                password (hex)
        == Kerberos ==
                Username: mrealman
                Domain: BLOCK.THM
        == WDIGEST [1cbb91]==
                username mrealman
                domainname BLOCK
                password None
                password (hex)
        == DPAPI [1cbb91]==
                luid 1883025
                key_guid dceaf1e5-3b90-43fe-b6fb-c686b349c13b
                masterkey 2f3e5ee18382e593671c68d96f289eac03f3f49debf8403902342141b74cc7acd7e374c71e1644da5ba76b7d3aea99bf4baa5478a6f17ab83c6df0f1ba3bcdf5
                sha1_masterkey c8561de62042ed90e7d551d4d316f6f52a37d9e1
...
== LogonSession ==
authentication_id 828825 (ca599)
session_id 2
username eshellstrop
domainname BLOCK
logon_server WIN-2258HHCBNQR
logon_time 2023-10-22T16:46:09.215626+00:00
sid S-1-5-21-3761843758-2185005375-3584081457-1103
luid 828825
        == MSV ==
                Username: eshellstrop
                Domain: BLOCK
                LM: NA
                NT: 3f29138a04aadc19214e9c04028bf381
                SHA1: 91374e6e58d7b523376e3b1eb04ae5440e678717
                DPAPI: 87c8e56bc4714d4c5659f254771559a800000000
        == WDIGEST [ca599]==
                username eshellstrop
                domainname BLOCK
                password None
                password (hex)
        == Kerberos ==
                Username: eshellstrop
                Domain: BLOCK.THM
        == WDIGEST [ca599]==
                username eshellstrop
                domainname BLOCK
                password None
                password (hex)
        == DPAPI [ca599]==
                luid 828825
                key_guid c03cf95e-ff22-4fe9-aac6-93b9586d37c8
                masterkey b0bf26e3ee42acb190007958d5514a966ba87f4425d14688566b9a31e0fd98687bf28c9b5a21bc47f53380967cd871d5b56023b7318cd04d9cf4ba6663cd4d9c
                sha1_masterkey c7bee2cb7cdd6eb62201adda6d034ea41a126c7c
...

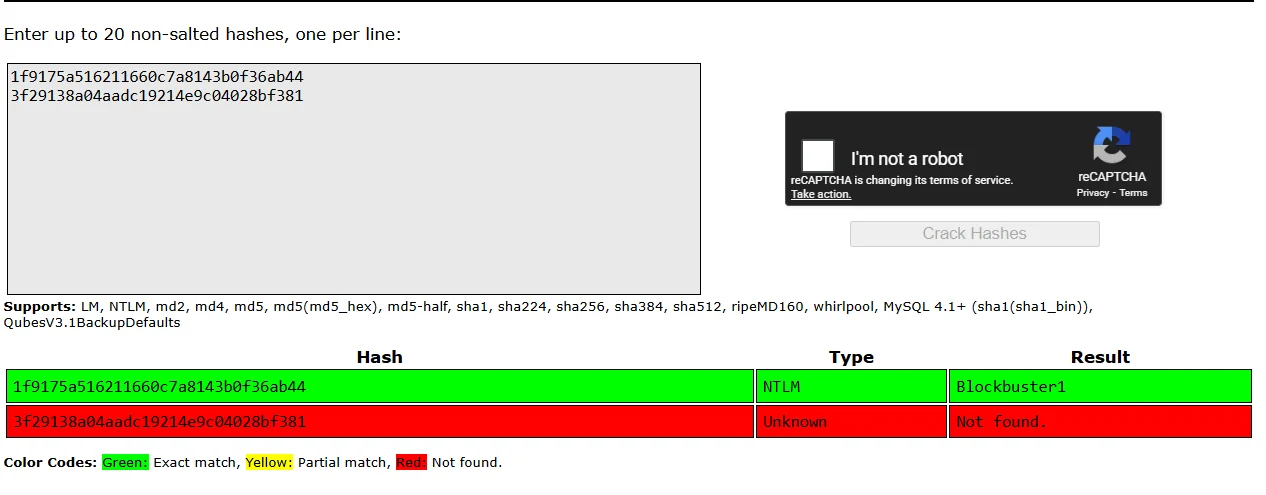

Basing on the size of the hash i’m guessing its a n md5 hash so I use crackstation to crack them and we get one password for the user mrealman

crackstation index

Packet Capture File

Opening the traffic.pcapng file in wireshark and check the statistics we can deduct most of the traffic is SMB.

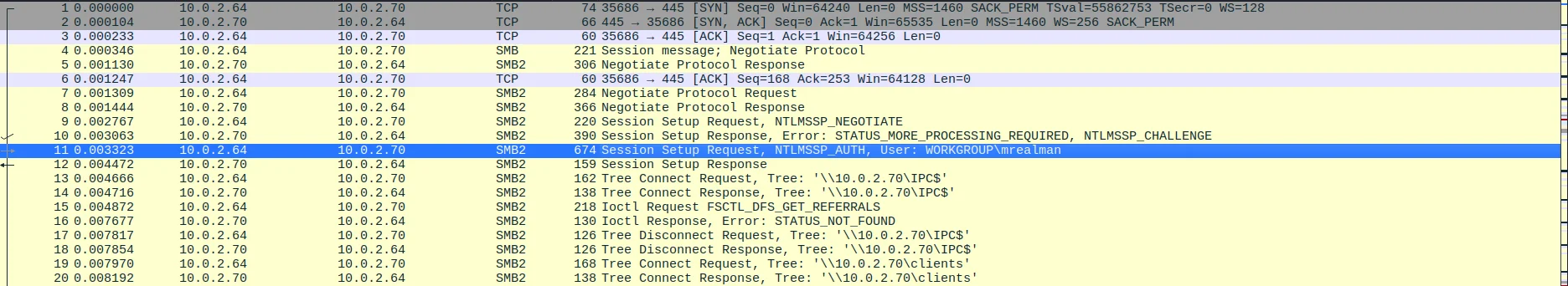

Checking the traffic manually we see NTLM_AUTH which shows login for the user mrealman.

realman index

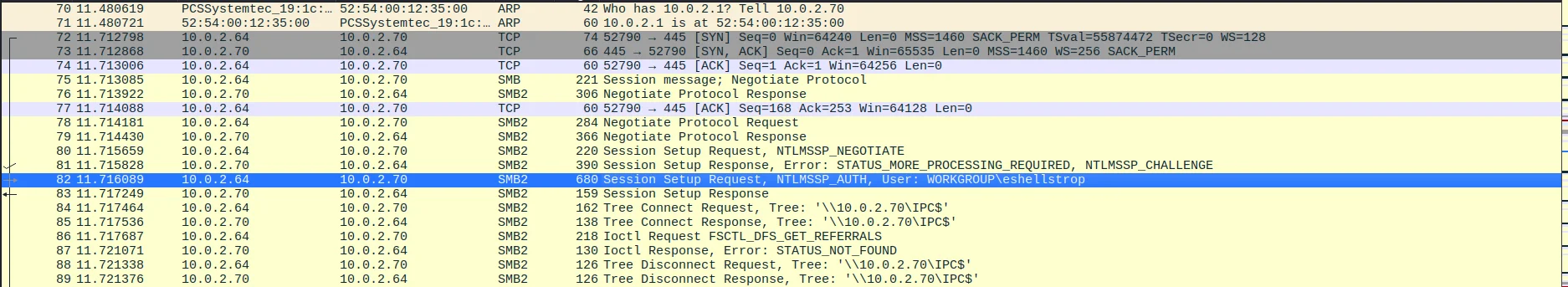

Enumerating further we also find a login for the user eshellstrop.

eshellstrop index

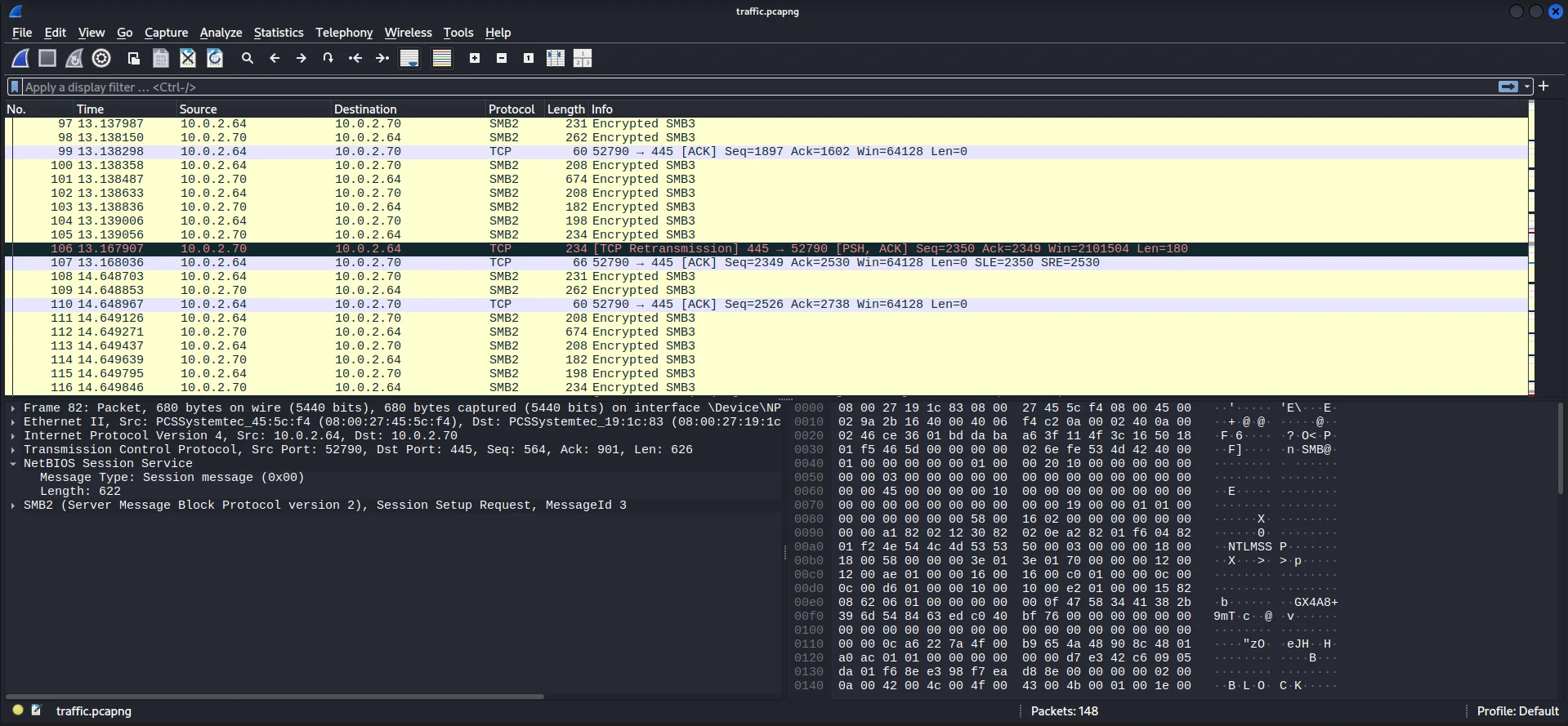

And lastly we see some encrypted SMB3 traffic.

smb traffic

Decrypting SMB3 Traffic

I do enumeration on ways to decrypt the smb3 traffic in the packet capture and find an article that helps us link. We can use the Key Exchange Key to decrypt the Encrypted Session Key to get the Random Session Key and use it to decrypt the SMB3 traffic. We will use the username,domain,NT hash or password and NTProofStr to calculate the Key Exchange Key.

From our previous enumeration we have everything we need The username,domain and NTProofStr are found in the packet capture while NT hash and Password are found in the lsass dump. We also need the Encrypted Session Key which is in the packet capture file aswell. A python script is provided to calculate the Key Exchange Key and decrypt the Encrypted Session Key but I make an adjustment to run on python3 and also a functionality to accept NTLM hash as an argument.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

import hashlib
import hmac
import argparse
from Cryptodome.Cipher import ARC4
from Cryptodome.Cipher import DES
from Cryptodome.Hash import MD4

def generateEncryptedSessionKey(keyExchangeKey, exportedSessionKey):
    cipher = ARC4.new(keyExchangeKey)
    sessionKey = cipher.encrypt(exportedSessionKey)
    return sessionKey

parser = argparse.ArgumentParser(description="Calculate the Random Session Key based on data from a PCAP (maybe).")
parser.add_argument("-u", "--user", required=True, help="User name")
parser.add_argument("-d", "--domain", required=True, help="Domain name")
credential = parser.add_mutually_exclusive_group(required=True)
credential.add_argument("-p", "--password", help="Password of User")
credential.add_argument("-H", "--hash", help="NTLM Hash of User")
parser.add_argument("-n", "--ntproofstr", required=True, help="NTProofStr. This can be found in PCAP (provide Hex Stream)")
parser.add_argument("-k", "--key", required=True, help="Encrypted Session Key. This can be found in PCAP (provide Hex Stream)")
parser.add_argument("-v", "--verbose", action="store_true", help="increase output verbosity")

args = parser.parse_args()

#Upper Case User and Domain
user = args.user.upper().encode("utf-16le")
domain = args.domain.upper().encode("utf-16le")

if args.password:
  # If password is supplied create 'NTLM' hash of password
  passw = args.password.encode("utf-16le")
  hash1 = hashlib.new("md4", passw).digest()
else:
  hash1 = bytes.fromhex(args.hash)

# Calculate the ResponseNTKey
h = hmac.new(hash1, digestmod=hashlib.md5)
h.update(user + domain)
respNTKey = h.digest()

# Use NTProofSTR and ResponseNTKey to calculate Key Excahnge Key
NTproofStr = bytes.fromhex(args.ntproofstr)
h = hmac.new(respNTKey, digestmod=hashlib.md5)
h.update(NTproofStr)
KeyExchKey = h.digest()

# Calculate the Random Session Key by decrypting Encrypted Session Key with Key Exchange Key via RC4
RsessKey = generateEncryptedSessionKey(KeyExchKey, bytes.fromhex(args.key))

if args.verbose:
    print("USER WORK: " + user.hex() + "" + domain.hex())
    print("PASS HASH: " + hash1.hex())
    print("RESP NT:   " + respNTKey.hex())
    print("NT PROOF:  " + NTproofStr.hex())
    print("KeyExKey:  " + KeyExchKey.hex())
print("Random SK: " + RsessKey.hex())

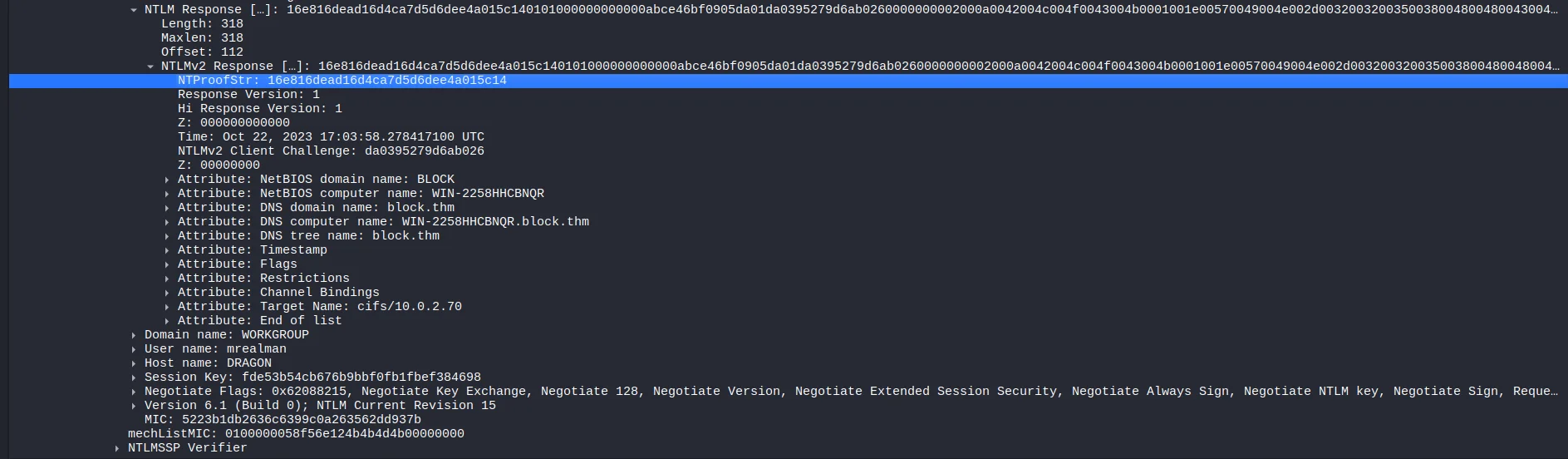

So now we gather values we need to decrypt the session for mrealman

ntproofstr mrm index

Username: mrealman Domain: WORKGROUP NTProofStr: 16e816dead16d4ca7d5d6dee4a015c14 Encrypted Session Key: fde53b54cb676b9bbf0fb1fbef384698

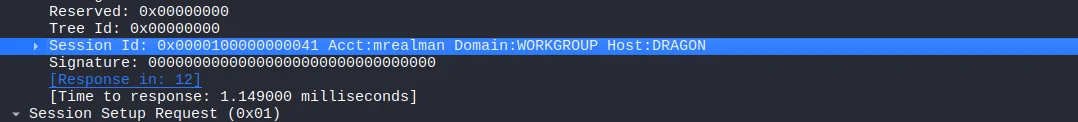

We also have the user password based on the hash crack. Also take note of the Session ID

sessid index Session ID: 0x0000100000000041

Having everything we need we run the python script to get the Random Session Key.

1
2
3
4
5
6
7
8

$ python3 random-session-key.py -u 'mrealman' -d 'WORKGROUP' -H '1f9175a516211660c7a8143b0f36ab44
' -n '16e816dead16d4ca7d5d6dee4a015c14' -k 'fde53b54cb676b9bbf0fb1fbef384698' -v
USER WORK: 4d005200450041004c004d0041004e0057004f0052004b00470052004f0055005000
PASS HASH: 1f9175a516211660c7a8143b0f36ab44
RESP NT:   110fd571fec8b2d44728e3d4d6f32f0a
NT PROOF:  16e816dead16d4ca7d5d6dee4a015c14
KeyExKey:  17e09b2c9b92045329a4382898f50159
Random SK: 20a642c086ef74eee26277bf1d0cff8c

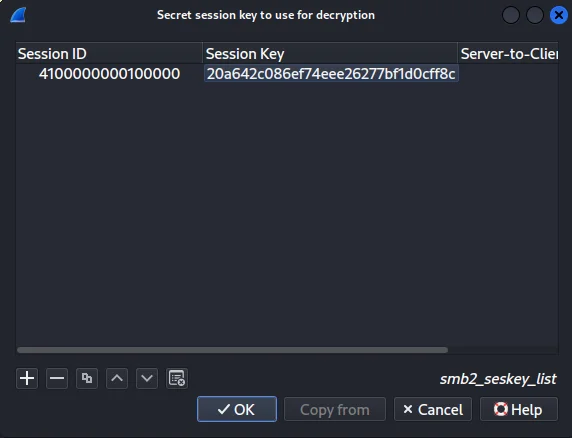

We then add it to wireshark under protocole preferences>secret session keys for decryption to decrypt the traffic. The session ID bytes are reversed due to endianness.

sesskey index

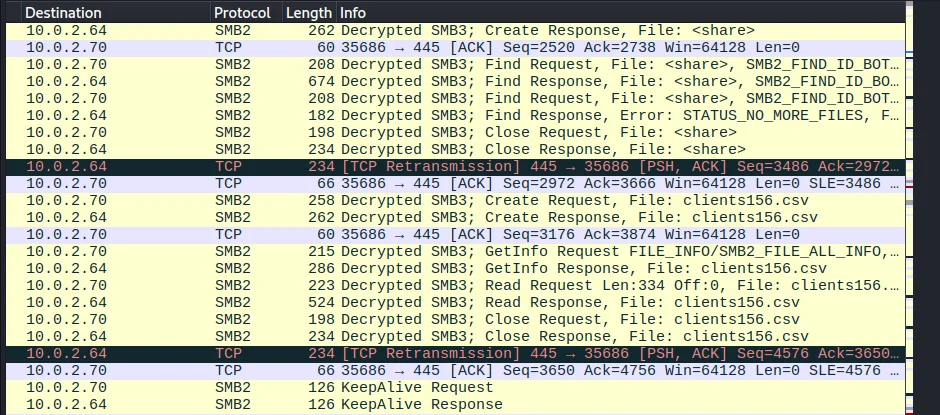

Going back to the traffic on the pcap we see that the SMB3 traffic is now decrypted and also see the user accessing the file clients156.csv.

decrypt index

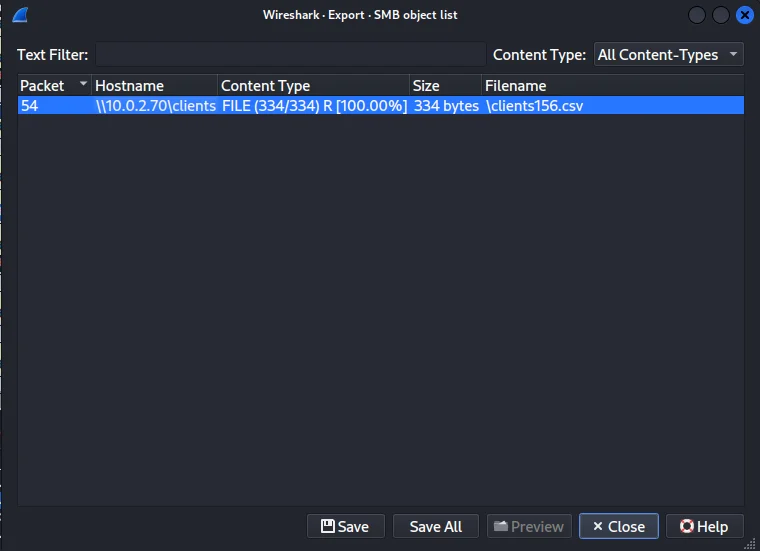

We can use wireshark to export the file through SMB objects.

object 1 index

Reading the extracted file we get the first flag.

1
2
3
4
5
6
7
8
9
10
11
12
13

$ cat %5cclients156.csv
first_name,last_name,password
Jewell,Caseri,eS8/y*t?8$
Abey,Sigward,yB0{g_>KezO
Natassia,Freeth,tS2<1Fef9tiF
Verina,Wainscoat,kT8/2uEMH
Filia,Sommerling,oE9.2c?Sce
Farris,Busst,THM{SmB_DeCrypTing_who_Could_Have_Th0ughT}
Bat,Oakes,gE0%f@'qw}s%
Verina,Jedrachowicz,wK4~4L\O
Caril,Wolfarth,yQ3$Ji0~f7aB>F{
Bordie,Baume,iM1}"x)yP'`2|S
,,

Now we have to do the same process for the user eshellstrop.

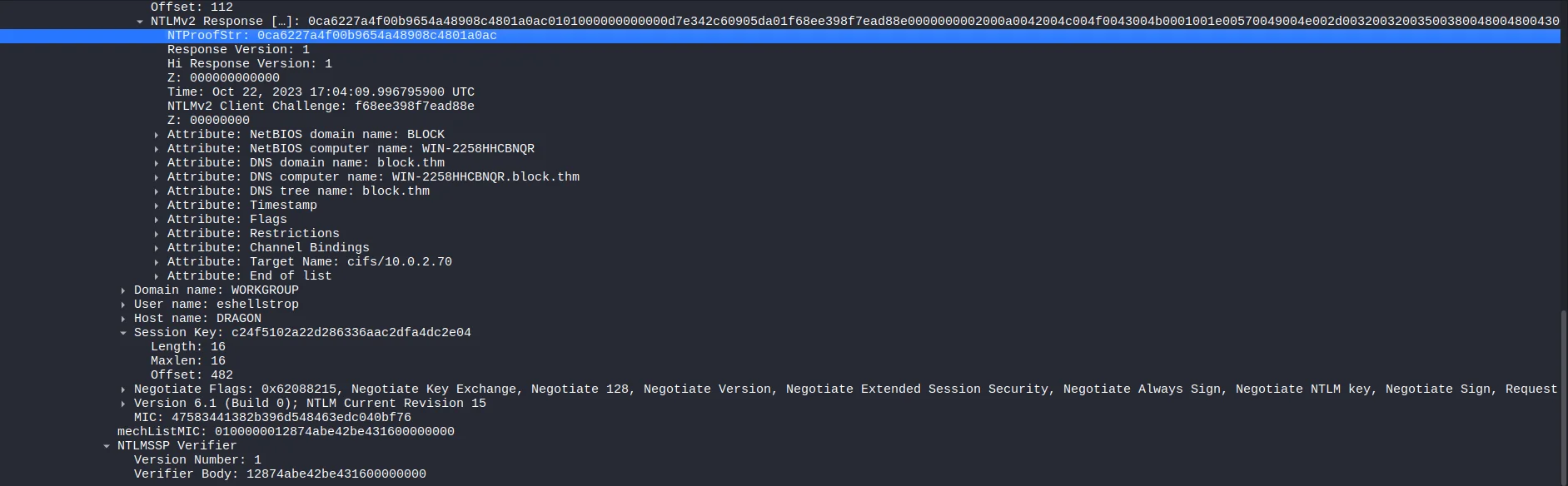

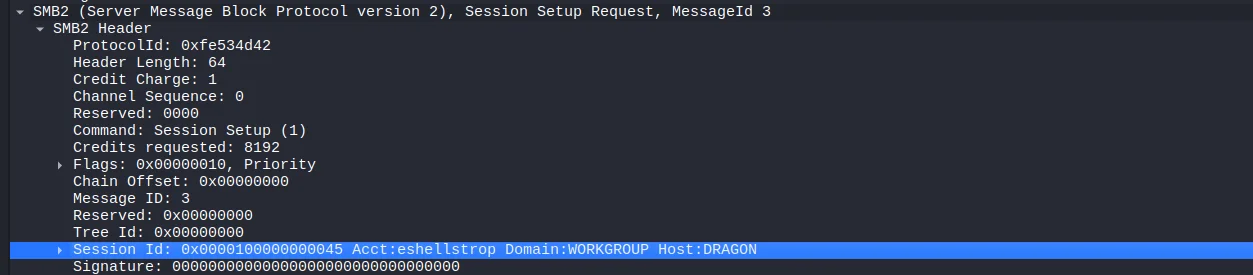

Finding values for random session key script.

eshellstrop index eshellstrop sess index

Username: eshellstrop Domain: WORKGROUP NTProofStr: 0ca6227a4f00b9654a48908c4801a0ac Encrypted Session Key: c24f5102a22d286336aac2dfa4dc2e04 Session ID: 0x0000100000000045

Running the script we get the Random Session Key

1
2
3
4
5
6
7

$ python3 random-session-key.py -u 'eshellstrop' -d 'WORKGROUP' -H '3f29138a04aadc19214e9c04028bf381' -n '0ca6227a4f00b9654a48908c4801a0ac' -k 'c24f5102a22d286336aac2dfa4dc2e04' -v
USER WORK: 45005300480045004c004c005300540052004f00500057004f0052004b00470052004f0055005000
PASS HASH: 3f29138a04aadc19214e9c04028bf381
RESP NT:   f48087e449d58b400e283a27914209b9
NT PROOF:  0ca6227a4f00b9654a48908c4801a0ac
KeyExKey:  9754d7acae384644b196c05cda5315df
Random SK: facfbdf010d00aa2574c7c41201099e8

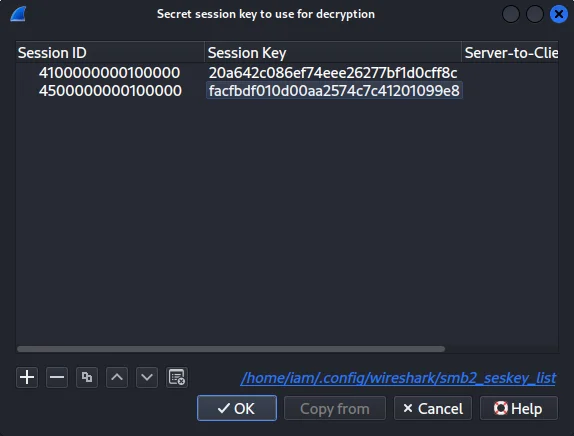

We add the key to the list of SMB session keys on Wireshark

sesskey2 index

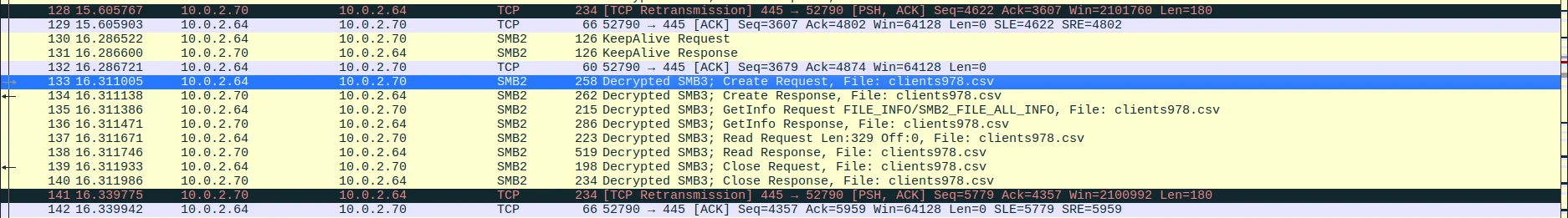

And once again the SMB traffic is decrypted and now the user is accessing the file clients978.csv

decrypt index

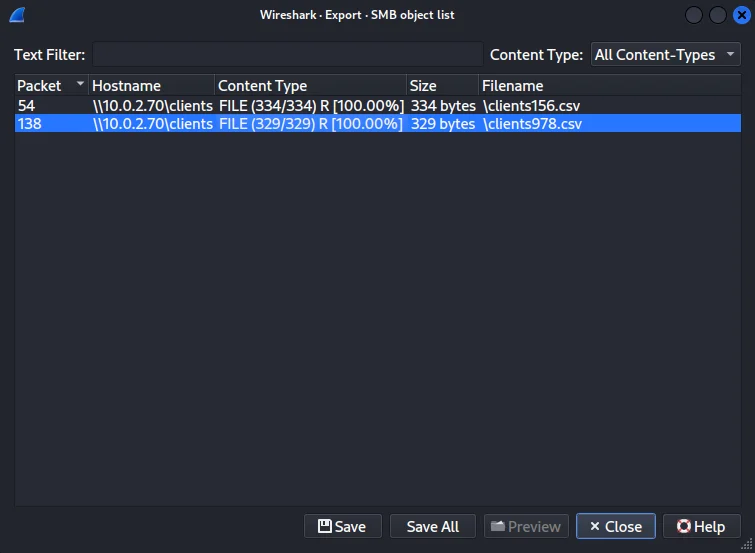

We export the file and read the clients978.csv we get our second and last flag of the room.

object2 index

1
2
3
4
5
6
7
8
9
10
11
12
13

$ cat %5cclients978.csv
first_name,last_name,password
Fran,McCane,vP5{|r$IYDDu
Fredrika,Delea,qU2!&Bev
Josefa,Keir,hX0)gq54I"%d
Joannes,Greatham,vS1)N,z1X1rc
Courtenay,Keble,lV6|0aiSZL@@`bbM
Tonye,Risebrow,THM{No_PasSw0Rd?_No_Pr0bl3m}
Joleen,Balog,tK9'ZapdU.'igGs
Clementia,Kilsby,uC6!Bx}`Xe
Mason,Woolvett,eL0$NO)FRY1IT
Rozele,Izachik,wA8>11$,'0,b+
,,
